Description
Automatic Ground Vehicle Loop Detector With Presence and Pulse Relays
single channel loop detectors are used for detecting the presence or the passage of a vehicle over an inductive wire loop inserted in the roadway surface. jutai created single-channel loop detector troubleshooting vehicle detector with features of Failsafe outputs and Automatic Tuning. One presence relay and a second relay which can be configured as presence, pulse on entry or pulse on exit. Operates on 110VAC.
Automatic Ground Vehicle Loop Detector Specifications
| Power supply | 12-24VADC(LD-106) |
| Frequency range | Four step switch selectable 20-80KHz |
| Sensitivity | 16 way selectable /Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Reaction time | 10-90MS |
| Channel | Single loop |
| Operating temperature | -40℃ to +70℃ / (-111℉ to +158℉) |
| Relative humidity | Up to 95% relative humidity without condensation |
| Environmental compensation | Automatic drift compensation |
| Output mode | Presence Relay/Fault Relay output |
| Loop inductance | 20-2000μH |
| Size | 75mm*43mm*110mm |
| Visual Indications | Power LED-Red / Channel LED-Green |
| Integral Fault Relay | provide an output in the event of a loop fault condition. |
Automatic Ground Vehicle Loop Detector 11-PIN connection
Loop Installaion instruction
Features
One channel loop detector.
No warm-up time required.
Self –tuning and complete environmental tracking.
Four selectable loop frequencies to eliminate crosstalk.
Loop Installation
All permanent loop installations should be installed in the roadway by cutting slots with a masonry cutting disc or similar device. A 45° crosscut should be made across the loop corners to reduce the chance of damage that can be caused to the loop wire insulation at right angle corners.
Loop detectors are used to detect the presence of vehicles. The loop is connected to the detector. find more LD-100 specifications here.
Exit loops are used to open gates to allow a vehicle’s exit.
Safety loops are used to prevent a gate from closing on a vehicle. Two loops can be wired to one detector. This is frequently the case in safety loops. Loops are placed in front and behind the gate.
Shadow Loops are typically used in commercial locations. They close the gate as soon as a vehicle passes over them deterring other vehicles from tailgating in behind them.
Application
1) Parking lot entrances vehicle detection.
2) Parking lot space information acquisition system.
3) Electronic police traffic lights snap shot system.
4) Traffic monitoring system.

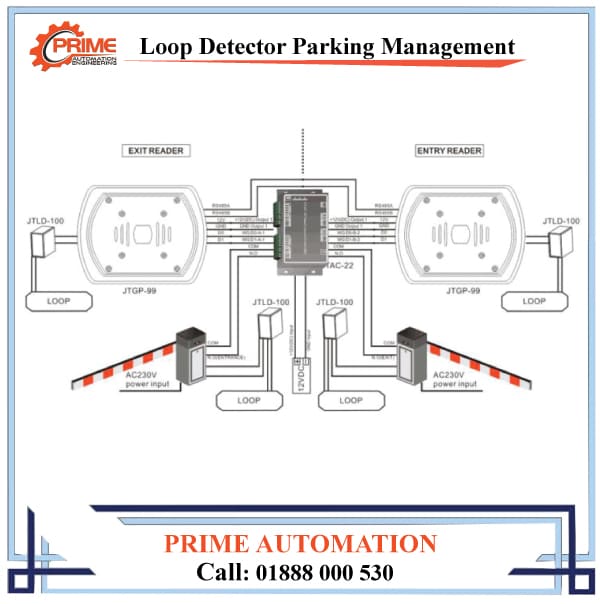

Automatic Ground Vehicle Loop Detector Application
FAQ:
Q1: Can I get some samples?
A: Yes! sample orders are welcomed.
Q3: Can I change color or the design?
A: Yes, customized color or design is available.
Q4: What’s the delivery time?
A: A week for sampel,15-30days for mass production.
Q5: What’s the payment way?
A: T/T bank transfer, Western Union, PayPal
Q6: Can I trust you?
A: Absolutely yes, we are Alibaba verified supplier.
Q7: May I visit your factory?
A: Sure, anytime is welcome. We are located in
5th floor, mingjinhai complex building, Zhoushi Road, Shiyan Town, Ban District, Shenzhen City, Guangdong Province, China.
Q8: What is lead time if we place an order?
If we have the order in stock, it would be 5 working days.
If we don’t have the order in stock, it would be 5-10 days.
Q9: How to make payment?
T/T, Paypal, Western Union, L/C is acceptable.
Q10: What is the Automatic Ground Vehicle Loop Detector delivery way?
DHL, UPS, Fedex, TNT ,EMS, DTDC etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport.
