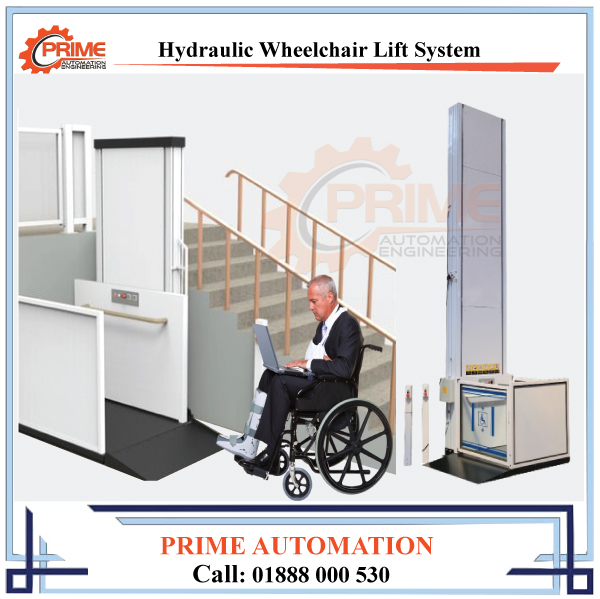

Hydraulic Wheelchair Lift System

Description

2m height hydraulic handicap vehicle platform lifts for handicapped home

Product Description Freedom handicap vehicle lifts provide convenient, reliable and safe access between different levels for elder or disabled, supporting a wide selection of application.

Applications:
1) Installation Mode, handicap platform lift Non-base pit installation, directly fixed on the concrete ground, when there is no pit for outdoor using, the concrete ground below the platform shall not be lower than the neighboring ground.

2)  Extra control Device, The lifts for handicapped home control box shall be installed in the neighboring wall of the upper/lower layer of the equipment and remote controller shall also be used for options.

3) Emergency Stop: The Wheelchair Elevator Lift ascending/descending process of the machine shall be controlled by pressing the emergency button.

Main Features
1)Overload protection devices are available.
2)The system has the ani-drop function when any failure happens.
3)The hydraulic cylinder as main driving force and the heavy chain and wire rope to guarantee to lift security and stability.
4)Hydraulic lifting system and electric hierarchical control, multi-control points at the different floors could be realized.
5)Disabled lift self-height is only 60mm, usually no need to dig lift pit.
6)Emergency manual valve: In case power off, the lift can be lowered by manually

Wheelchair lift main parameters:
1. Platform size: 1430*900mm
2. Loading capacity:260kg
3. Lifting height:2000mm
4.Voltage: 110v/220v/380v

Packaging & Delivery
1)Plywood case outside of freedom wheelchair lift
2)Delivery, shipped in 25 days after getting deposit

Service&processing
FORU is the professional manufacturer of wheelchair lift since 2000. Our factory covers 21,000 square meters and has a series of modern production equipment, CNC cutting machines, automatic equipment, automatic abrasive blasting production rust removal line. spray paint line, automatic welding robot and so on. We have been exporting to 52 countries.
Welcome to visit our factory and test our machines’ quality, Sincerely.

Pre-Sales Service
* Technical supports and suggestions before you order a machine according to your home place.
* All the machines will be fully tested before shipments

After-Sales Service
* Operation manual and installation manual
* Engineers available to service machinery overseas.
* 12 months warranty period and we will provide the consumable parts at cost price after the warranty period
* 24-hour technical support by emails, calling or videos
