Description

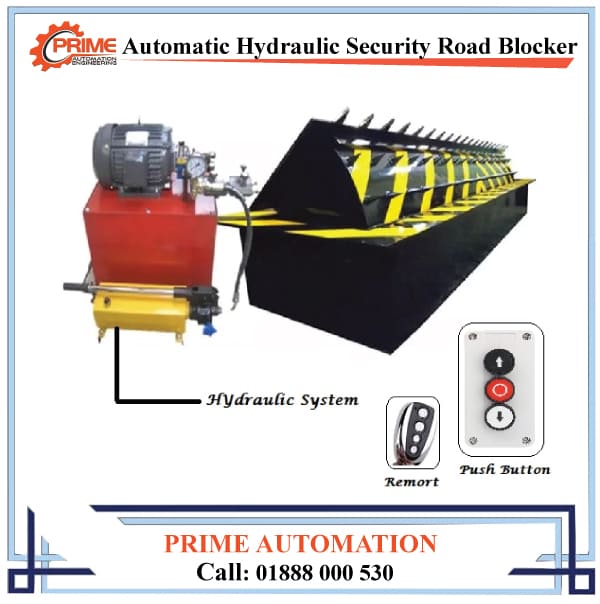

Hydraulic Road Blocker

Product Introduction

The road block machine has an overall carbon steel structure. It is used in prisons, military units, airports, oil fields, chemical plants, bank vaults and other places that require extremely high levels of on-site anti-collision equipment. The basic design has a maximum impact resistance of 500,000 kcal. It is equivalent to blocking the impact of a 10-ton truck traveling at 50 kilometers per hour. Can completely block the impact of a 7.5-ton truck traveling at 80 kilometers per hour.

Product Specifications

System control: external hydraulic station (built-in hydraulic station can be selected within 3 meters)
Top plate steel plate thickness: 16MM (can be customized)
Vertical height: 500mm (can be customized)
Lifting time: rising 2S> falling 1.5S> (adjustable)
Length, width and height: 3000*1000*820mm (can be customized)
Effective interception width: 2760mm (can be customized)
Working temperature: -35°C~75°C (suitable)
Traffic pressure: can pass 100T container truck
Motor: 3HP*4HP three-phase 380V (industrial grade)
Oil pump: (industrial grade)
Lift solenoid valve (industrial grade)
Heavy duty hydraulic cylinder:HOB63-200CA+I
Double-action double-oil manual pump 2, 3ML/time (process grade)
Hydraulic pipe: PT international standard interface, 1/2 double-layer steel wire

Color: red, white, yellow (can be customized)
Anti-collision level:>850000 Joules (can be customized)
1000 tons instant impact force
Control mode: remote control, manual, license plate recognition, access control linkage or remote control via mobile APP
Protection level: IP65
Regular size:3000*1000*820
Control module: SCM customizable PLC
Original chips imported from the United States
Power switch (industrial grade)
Control solenoid valve (industrial grade)
Power supply industrial grade (-28C -85C)
Remote control range within 50M
Lifting height:500/600/700
Fuel tank volume: 60L

① Road Blocker Machine Spike

The sashimi diameter is 30mm, the sashimi length is 60mm, the sashimi diameter and length can be customized, and the full welding process is strong and anti-collision.

② Built-in Hydraulic Power (Pptional)

Built-in micro hydraulic power unit, free of hydraulic pipelines, easy maintenance and construction (suitable for small road blocker machines within 3 meters).

③ Overall Material

The road blocker machine is welded from A3 carbon steel and can pass 100T vehicles. The surface is sprayed with plastic effect.

④ 3M Reflective Polish

3M diamond grade reflective stickers, the reflective effect at night is as high as more than 85%, and the color can choose yellow, red, green and other reflective effects (customization is supported).
