Automatic Sliding Door Prime 125

Description

Automatic Sliding Door Prime 125

• Door weight max.: 1x150kg, 2x120kg
• Door Width: 500-1200 mm
• Opening speed: 150-600 mm/s
• Closing speed: 120-500 mm/s
• Hold open time: 0~9 s
• Motor: 24V 60-100W brush-less DC
• Ambient temperature: -20℃~+60℃
• Voltage: AC 200~250V 50/60Hz








  Automatic pedestrian sliding door system (Prime 125 ) can be used for single leaf sliding door or bi-parting sliding door. it can be also applied to framed or frameless glass door. With specially-designed 4.2m alminium track and cover(standard length 4.2m, could be cut as per customer’s need), low-noise round type 24V DC 60W/100W brushless motor, non-digital or digital microcomputer controller, 24G microwave induction sensors. optional remoter control device or function keypad switch, it is easy to install, debug, operate and maintain and able to meet various requirements of different automatic sliding doors.

  Technical Data of Automatic pedestrian sliding door system:

  Gate sliding modes	Single-opening	Double-opening
  Gate leaf weight	≤1*155 kg	≤2*145 kg
  Gate leaf width	600-1200mm	500-1100mm
  Opening speed	150-600mm/s(Adjustable)	150-550mm/s(Adjustable)
  Closing speed	120-550mm/s(Adjustable)	120-500mm/s(Adjustable)
  Motor	24V 60/100W brushless DC motor
  Hold open time	0-9second(Adjustable)
  Special Function	Security ,Hermetic
  Voltage	AC220V  50Hz-60Hz
  Operating Temperature	-20°C~60°C

  Automatic pedestrian sliding door system(VZ-155) Details:

  Place of Origin	Zhejiang, China (Mainland)
  Brand Name	Prime
  Model Number	(Prime 125 )
  Open Style	Automatic induction
  Position	Commercial premises, hotels, banks, office buildings
  Surface Finishing	Finished
  Type	Sliding Doors
  Sliding Door Type	Single-leaf of bi-parting glass doors
  Door Material	Glass
  Power supply	220~230V,50/60HZ
  Model	Automatic Sliding Door

  Features of Automatic pedestrian sliding door system (VZ-155):
  **With high elasticity and density hanger roller. Dual system to prevent door dislocation during operator and easy to adjust door alignment and positioning.
  **Various accessories available: mode selector, lock device, battery pack and sensors.
  **Vibration-proof structures.
  **Warranty: 18months
  **1 million times of tests passed.
  **Motor power control system with automatic reversal for user safety
  **Anti-pinch function makes the operator more safe and more reliable.
  **Door will be able to operate about 200 times(open and close) during a power failure.
  **Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.
  **Good solution for accessories, for example, finger printer, remote control, push button, access keypad, security sensor, fire alarm, digital wireless video entry and so on.

  Components list of Automatic pedestrian sliding door system (Prime 125)

  Standard packing list
  55W/100W Round Type Motor	1
  Digital Controller	1
  Microwave motion sensor	2
  Driven wheel / Idler pulley	1
  Connector	1
  Hangers	4
  Link span(left)	1
  Link span(right)	1
  Stopper	2 (left/right)
  Belt tensioner	1
  Fastenings	1 set
  Aluminium beam	2×2.1m
  Installation Manual & Warranty Card	1set

  The Applications:
  *Retail and Food Stores
  *Government Buildings
  *Restored Sites
  *Hotels
  *Restaurants
  *Office Buildings
  *Hospitals & Other Health Care Facilities
  *Schools
  *Retirement Homes
  *Independent Living Centers
  *Facilities for the Disabled
  *Airports
  *Villas

  Diagram of Automatic pedestrian sliding door system (VZ-155):
  This is the sectional view of automatic sliding door operator installation. Compared to traditional hydraulic system, its installation is much easier and more convenient. And from aesthetic perspective, its design is more human and more beautiful.

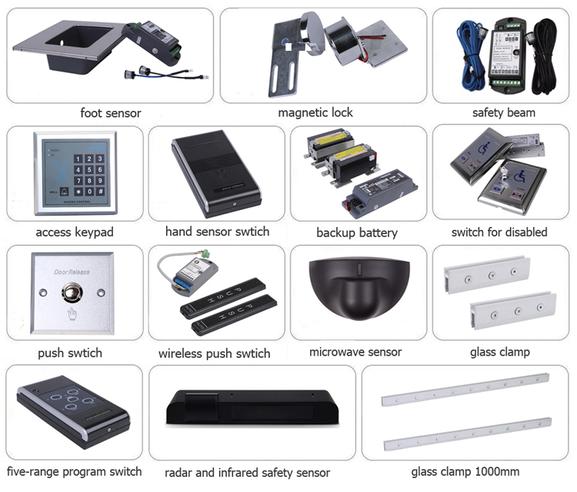

  Optional accessories:

  Details of Optional accessories
  Model No.	Specification
  PT01	Safety beam(photocell)                                          Power: DC12~36V Max transmission distance: 10m Type: single beam(one pair eyes)
  AK02	Access keypad(plastic) Power: 12VDC User capacity: 500 users
  FC04	Remoter(4 buttons) Power: 12~36V 433MHZ Learning code type Transmission distance: 25M Function status: full open, half open, lock, automatic
  FP02	Finger printer(stainless) Power: DC 12V Weight: 500g Size: 115×70×35mm(L×W×H)
  UPS	Backup battery One set of changing electronic part and two pcs 12V battery. When power off, it can make the door work 3 hours or open and close 100 times.
  PB03	Wired push button switch(plastic) Weight: 96g Size: 200×50×12.5mm(L×W×H)
  LC02	Electric lock Power: DC 12V Working current: 800mA Installation hole:212(L)*35(W) Deep into wall around 43mm                                                                         Panel dimension:205×34×42mm(L×W×H)
  PB04	Touchless switch Power: DC 12V Working type: infrared induction Working distance: 1-15cm Weight: 83g Size: 89×89×37mm(L×W×H)
  FG01	Framed door guider Max. 40mm
  GC02	Glass clamp(1m) Connect glass and hangers for frameless glass door One pc for one glass door leaf

  Product display:
